CSD941W水冷式超高温蝶阀使用说明

发布时间:2018-07-20     来源:艾德威尔•瑞拓
CSD941W水冷式超高温蝶阀是一款广泛应用于冶金,化工,建材,电站等行业中的超高温气体管道中的设备,作为高温气体介质调节或切断;与各种电,气动执行器配套使用组成不同性能的阀门,可实现远距离控制和自动调节和切断。
CSD941W water-cooled super high temperature butterfly valve is a kind of equipment widely used in the industries of metallurgy, chemical industry, building materials, power stations and so on. With various electric and pneumatic actuators, valves with different performance can be used to realize remote control and automatic adjustment and cutting.

1,用户在进出口处的两个流量调节阀进行调节进口处的进水量,使出口处水温≤60~80℃,并调节出口的水流速大于进口处的流速,同时在CSD941W水冷式超高温蝶阀使用前确保阀板内腔注满水。
1, the user in the import and export of two flow regulator to adjust the inlet into the water, the outlet water temperature of 60 ~ 80 ℃ or less, and adjust the export water velocity is greater than the inlet velocity, at the same time CSD941W water-cooled ultra high temperature butterfly valve before use to ensure that the valve plate inner cavity filled with water.

2,确保冷却水足够循环,当流量开关报警时必须及时处理。
2. Ensure that the cooling water is circulating enough and must be handled timely when the flow switch alarms.

3,当手动操作时,不得在手轮上再增加辅助杠杆,手轮顺时针旋转为阀开,反之为阀关。
3. When manually operated, no additional auxiliary lever shall be added to the handwheel. The handwheel shall rotate clockwise to open the valve and vice versa.

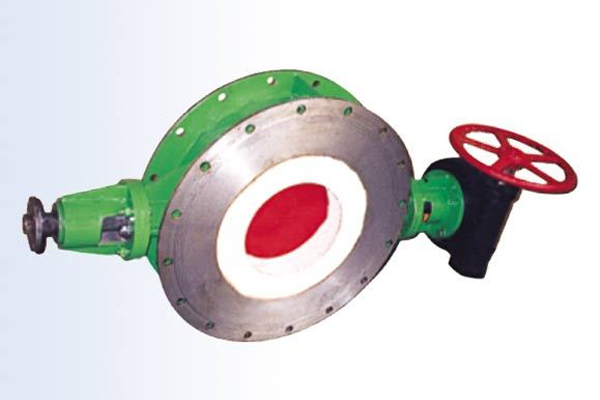

高温蝶阀


4,CSD941W水冷式超高温蝶阀可不平或垂直安装,但阀轴应处于水平位置,非水平安装请注明夹角,CSD941W水冷式超高温蝶阀可按使用要求设计制造,电动装置不允许做起吊用,并严禁碰撞。
4. The CSD941W water-cooled ultra-high temperature butterfly valve can be installed unevenly or vertically, but the valve shaft should be in a horizontal position. Please indicate the Angle of the non-horizontal installation.

5,CSD941W水冷式超高温蝶阀使用时确保进出水管道系统畅通,同时出水管应高出阀门位置。
5. When using the CSD941W water-cooled ultra-high temperature butterfly valve, ensure that the inlet and outlet water pipeline system is unimpeded, and the outlet water pipe should be higher than the valve position.

6,电动执行机构技术参数及原理接线图请参阅电动执行机构说明书。
6. Please refer to the manual of electric actuator for technical parameters and schematic wiring diagram of electric actuator.

需附件请注明(伺服放大器,电动操作器,控制箱,配法兰等)
Please specify the attachment (servo amplifier, electric operator, control box, flange, etc.)

注:冷却水为0.3MPA软化水,水温≤30℃,冷却水消耗量为(0.01~0.03)DNm3/h.

Note: 0.3 MPA demineralized water, cooling water temperature 30 ℃ or less and cooling water consumption for DNm3 / h (0.01 ~ 0.03).
