高温通风蝶阀的安装要点有哪些?

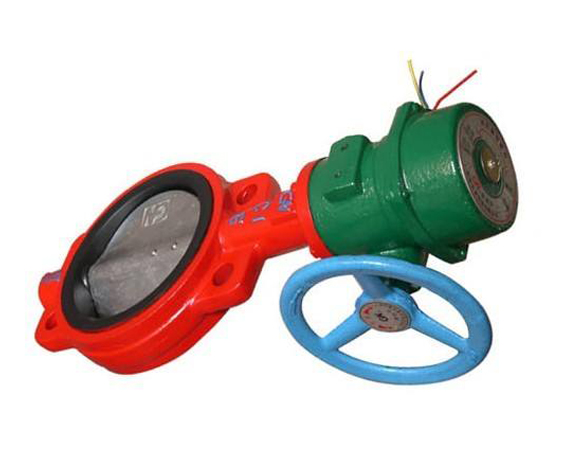

High temperature ventilated butterfly valve is a kind of valve that can be opened and closed by rotating the closing part (disc or disc) around the valve shaft as a disk. High temperature ventilated butterfly valve opening and closing piece is a disc shaped butterfly plate that rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjustment. High temperature and ventilation butterfly valve fully open to the barrier is usually less than 90 °, butterfly valve and the adjustment lever itself no self-locking ability, in order to butterfly plate positioning, to add worm gear reducer on the valve stem. So when it's installed, what are the key points you want to pay attention to?
1. The ventilation butterfly valve high temperature butterfly valve installation position, height, import and export direction must comply with the design requirements, pay attention to the medium flow direction should be consistent with the body the direction of the arrow, connection should be firmly connected.
2、通风蝶阀高温蝶阀安装前必须进行外观检查,阀门的铭牌应符合现行国家标准《通用阀门标志》GB12220的规定。对于工作压力大于1.0MPa及在主干管上起到切断作用的阀门,安装前应进行强度和严密性能试验,合格后方准使用。通风蝶阀高温蝶阀强度试验时,试验压力为公称压力的1.5倍,持续时间不少于5min,阀门壳体、填料应无渗漏为合格。严密性试验时,试验压力为公称压力的1.1倍;试验持续的时间符合GB50243要求。
2. Before installing the high-temperature butterfly valve, the appearance inspection must be carried out, and the valve nameplate should conform to the current national standard GB12220 of the general valve mark. For valves with working pressure greater than 1.0mpa and with cut-off function on main stem pipe, strength and strict performance test should be conducted before installation. When the strength test of the high-temperature butterfly valve of the ventilation butterfly valve is conducted, the test pressure is 1.5 times the nominal pressure, and the duration shall not be less than 5min. During the strict test, the test pressure was 1.1 times of the nominal pressure. The duration of the test meets the requirements of GB50243.
