蝶阀也称蝴蝶阀，其特点: 流体阻力较小、重量轻、结构简单、结构尺寸小，启闭迅速，制造较其他阀门节省材料。

Also known as butterfly valve butterfly valve, the characteristics of fluid resistance is small, light weight, simple structure, small size, rapid opening and closing, the valve manufacturing than other material saving.

高温蝶阀可适用于切断和节流，特别适用于大流量调节，使用温度受密封材料的限制。可用于带有悬浮固体的液体介质，适用于大口径管道。由于以往的加工工艺落后，蝶阀一直用在水系统上，而很少用在工艺系统上，随着材料、设计及加工的改进，高温蝶阀已经越来越多地用在工艺系统上了。

High temperature butterfly valve can be used for cutting and throttling, especially for large flow regulation, and the temperature is limited by sealing material. It can be applied to liquid media with suspended solids and is suitable for large diameter pipes. Because the previous process backward, butterfly valve has been used in water system, and are rarely used in the process of the system, with the improvement of material, design and processing, high temperature butterfly valve has been increasingly used in the process of system.

因蝶阀比闸阀经济、调节流量性能好，故能够使用蝶阀的地方最好不要使用闸阀。对于设计压力较低、管道直径较大，要求快速启闭的场合一般选用蝶阀。蝶阀有软密封和硬密封两种类型。选择软密封和硬密封主要取决于流体介质的温度。相对而言软密封要比硬密封的密封性能好。

Because butterfly valves are better than gate valves in terms of economy and flow performance, it is best not to use gate valves to use butterfly valves. Butterfly valves are generally used for occasions where the design pressure is low and the diameter of pipes is large. There are two types of butterfly valve, soft seal and hard seal. The choice of soft seal and hard seal depends mainly on the temperature of the fluid medium. Comparatively speaking, the soft seal is better than the hard seal.

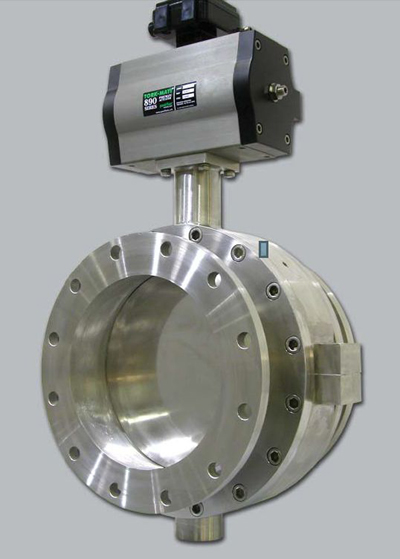

高温蝶阀是用圆盘式启闭件往复回转 90°左右来开启、关闭和调节流体通道的一种阀门。

The high temperature butterfly valve is a valve that opens, closes and regulates the fluid passage with reciprocating rotation about 90 degrees.

优点：Advantage:

① 结构简单，体积小，重量轻，耗材省，别用于大口径阀门中;

1.It is simple in structure, small in size, light in weight and low in consumables. It should not be used in large diameter valves.

② 启闭迅速，流阻小;

2. Rapid opening and closing, small flow resistance;

③ 可用于带悬浮固体颗粒的介质，依据密封面的强度也可用于粉状和颗粒状介质。可适用于通风除尘管路的双向启闭及调节，广泛用于冶金、轻工、电力、石油化工系统的煤气管道及水道等。

3.It can be used in the medium with suspended solids, and can also be used in powder and granular media according to the strength of the sealing surface. It can be used for bidirectional opening and closing of ventilation and dust removal pipelines, and is widely used in gas pipelines and waterways of metallurgy, light industry, power and petrochemical systems.

缺点：

Shortcomings:

① 流量调节范围不大，当开启达30%时，流量就达到近 95% 以上。

1. the flow regulation range is not large, and when the opening reaches 30%, the flow rate will reach more than 95%.

② 由于蝶阀的结构和密封材料的限制，不宜用于高温、高压的管路系统中。一般工作温度在 300℃ 以下，pn40 以下。

2. Due to the structure and sealing material of butterfly valve, it is not suitable for high temperature and high pressure piping system. The general working temperature is below 300 degrees Celsius, below PN40.

③ 密封性能相对于球阀、截止阀较差，故用于密封要求不是很高的地方。

3.Seal performance is worse than ball valve and globe valve, so the sealing requirement is not very high.
